آلة تمزيق أحادية المحور - فئة K

تصنيف: آلة التقطيع

GENOX RECYCLING TECH CO., LTD.

بلد: China

هاتف: 86-20-66851345

الشخص الذي يمكن الاتصال به: Jaime Jiang

الاستفسار الآن

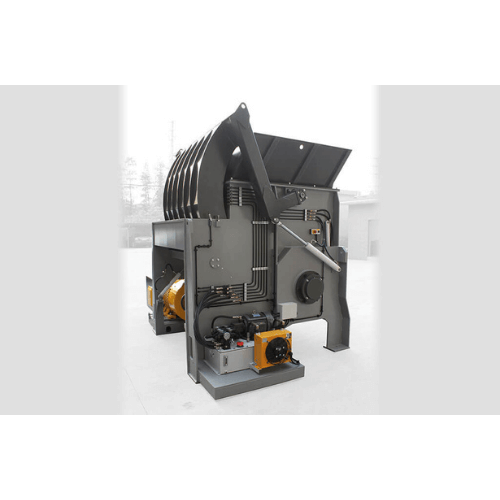

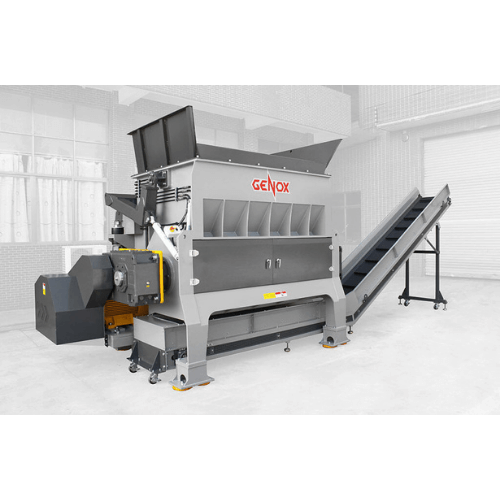

K Series Single Shaft Shredders are heavy duty machines suitable for processing a wide range of materials.
This range of shredders are ideal for the size reduction of flexible and/or medium hardness, volmunous products often loaded in bales. The fast acting, PLC controlled swing pusher automatically forces material to the rotor according to motor loading, maximizing material throughput. Machine capacities typically range between1,500kg/hr –9,000kg/hr+ depending on the model, material type and application.

Energy Efficient + Maximum Cutting Force & Productivity
Shock Absorbing Gearbox reduces Stress on Drive Components

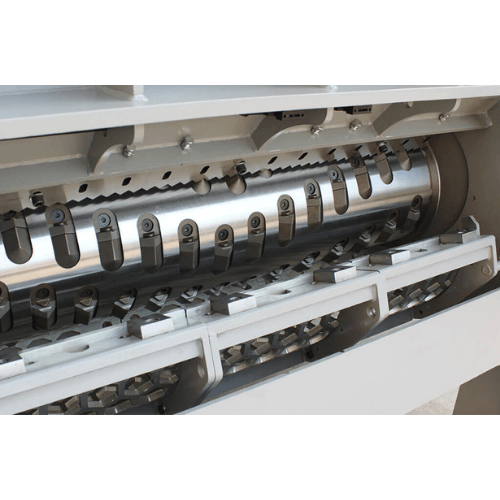

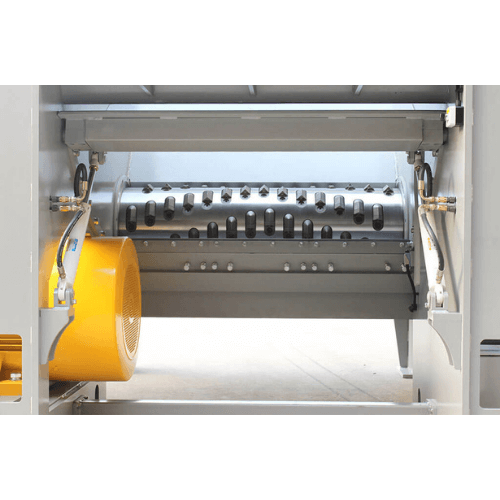

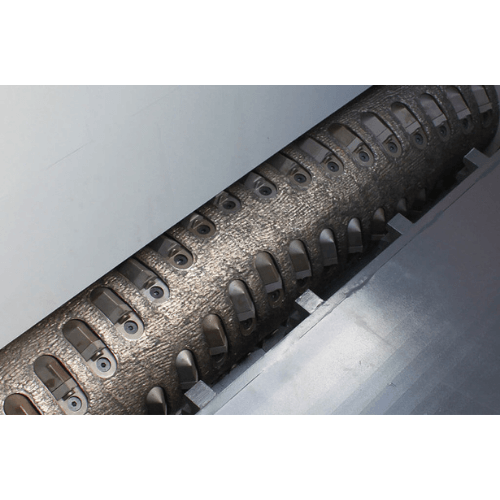

Rotor Knives can be rotated and used on four edges before replacement.
Long Life Counter Knives can be adjusted to maintain cutter clearance

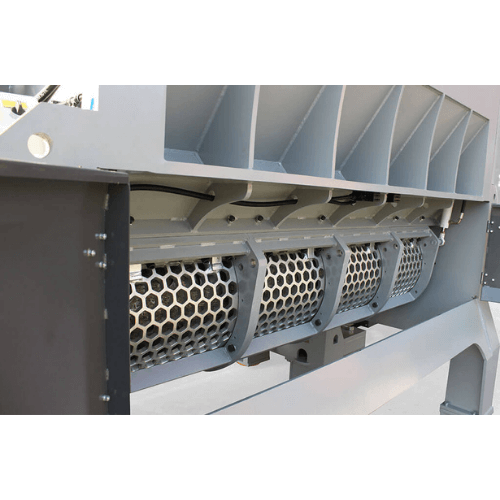

Quick Change Screens for accurate particle size control

Swing Ram Pusher with exchangeable PU Slides
Quick access to the rotor via the rear chamber access door
Twin Speed Hydraulics with integrated air cooler
Stand Alone Electrical Control Panel with Siemens PLC Control System
Tested, Approved and Certified to the applicable CE safety standards

Model		K1500	K2000	K1700	K2200	K2800	K1800	K2400	K3000
Main Drive(kw)		110	75+75	132	90+90	110+110	90+90	132+132	160+160
Rotation Diameter(Φmm)		480	480	650	650	650	800	800	800
Shredding width(mm)		1500	2000	1650	2240	2840	1790	2390	2990
Rotation Speed(rpm)		80	80	80	80	80	80	80	80
Number of Rotor Knives	Standard rotor	88	95	94+6	109+6	125+6	106	124	156
	S type rotor	/	/	/	/	/	/	/	/
	F type rotor	87	117	94+6	129+6	138+6	122	141	177
	K type rotor	88	95	94	109	125	106	124	156
Number of Counter Knives	Lower fixed blade	3	4	3	4	5	3	4	5
Number of Counter Knives	Upper fixed blade	3	4	3	4	5	3	4	5
Hydraulic Power Pack(kw)		11	11	11	15	15	11	15	15
Ram(mm)		1000	1000	1000	1000	1000	1000	1000	1000
Rotor blade size(mm)		40X40	40X40	40X40	40X40	40X40	40X40	40X40	40X40
The quantity of screens		3	4	3	4	5	3	4	5
Dimension	L	2230	2230	2400	2400	2400	2450	2450	2450
	W	3660	3710	3860	4500	5100	4160	4860	5460
	H	2970	2970	3410	3410	3410	3590	3590	3590
	A	1360	1360	1410	1410	1410	1410	1410	1410
	B	1910	2410	2110	2110	2110	2310	2960	3560
	C	460	460	550	600	600	600	600	600
	D	660	660	800	800	800	990	990	990
	E	1600	2100	1750	2300	2850	1850	1850	1850
Weight		12500	15000	14000	18000	22000	15000	21000	26000

Plastics – Mouldings, Purging/Lump, Profiles, Films etc.
Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials etc.
Copper Cable – Household, Telecoms and Industrial Cables including S.W.A
Aluminum – Used Beverage Cans (UBC’s), Swarf, Cables etc.
Textiles – Carpet (Rolls & Tiles), Garments etc.
Security Destruction – Counterfeit Items, Faulty Goods, Out of Date Stock etc.
Foam – Production Waste etc.
Mixed Household & Commercial Waste – RDF/SRF Production
