آلة تمزيق ثنائية المحور - فئة W

تصنيف: آلة التقطيع

GENOX RECYCLING TECH CO., LTD.

بلد: China

هاتف: 86-20-66851345

الشخص الذي يمكن الاتصال به: Jaime Jiang

الاستفسار الآن

The W series double-shaft shredder is widely used in high and low-speed shredding equipment. With its unique rotor and cutting chamber design, the rotor blades and counter blades cut materials perfectly, ensuring uniform cutting and reasonable reduction of raw material dust. This design also reduces wear on the knives and the screen. The rotor shaft surface can accumulate a wear-resistant welding layer, making the shredder more suitable for materials that are easily worn, thus providing maximum abrasion performance and better utilization rates.

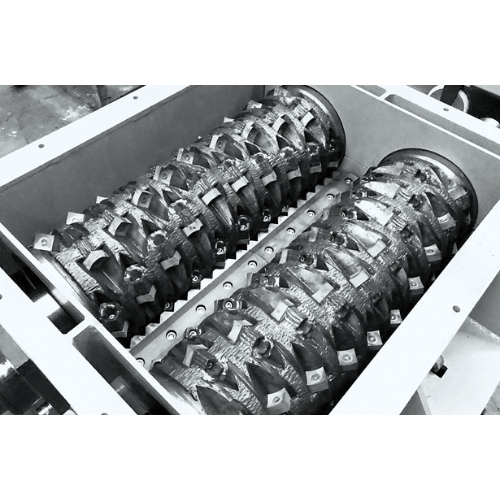

Two rotors knives shredder design, generating tearing and shredding effect.
V-cutting rotor design—with staggered cutter positioning.
Heat treated rotor knives—Special DC53 steel (hardened) four edges use before replacement.
Long life, adjustable fixed blades — Cutter clearance can be maintained.
Wear Resistant – Tungsten surface coating for abrasive applications)

Model	W1000	W1200
Dimension (L x W x H) (mm)	3500 x 1550 x 2560	4365 x 2150 x 3000
Hopper Opening (L x H) (mm)	1660 X 1535	1850 X 1740
Discharge Height (mm)	1150	1150
Rotation Diameter (mm)	Φ386	Φ471
Rotation Speed (RPM)	83	82
Screen Size (mm)	60	60
Number of Rotor	114	138
Number of Counter Knives	4	6
Main Drive (kW)	110	180
Weight(kg)	5950	12500
