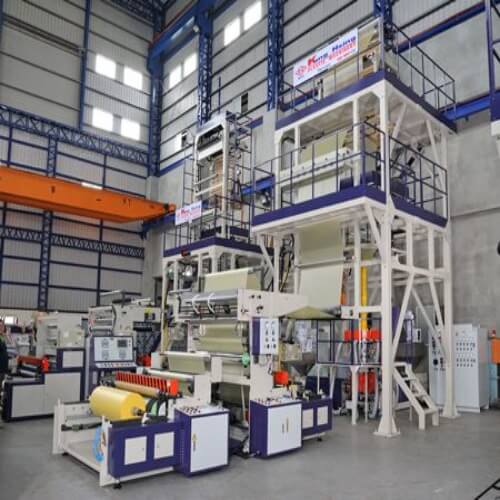

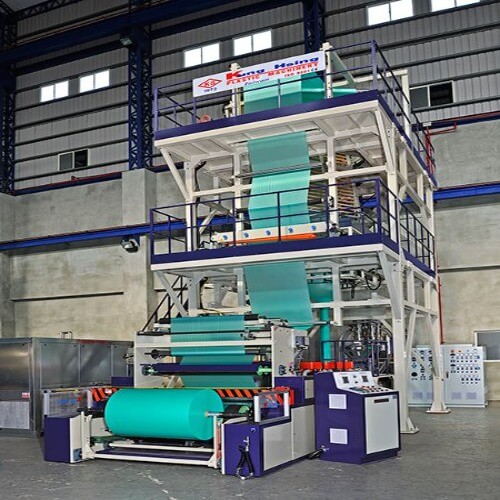

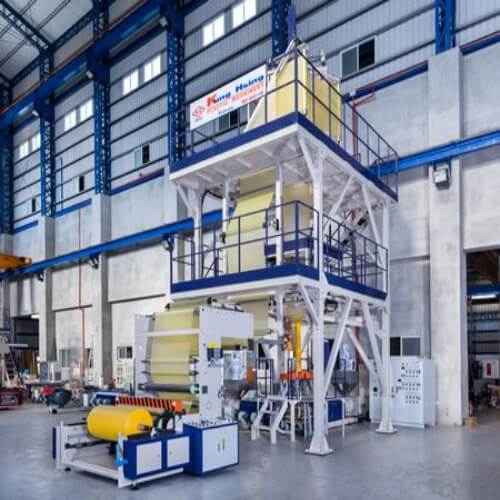

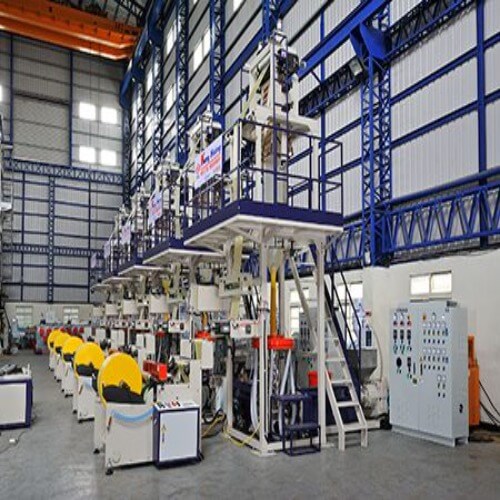

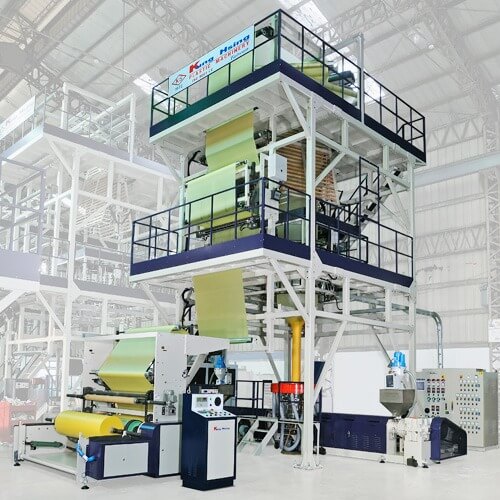

HDPE ABA متعدد الطبقات عالية السرعة خط الفيلم في مهب

تصنيف: بلون فيلم لين

KUNG HSING PLASTIC MACHINERY CO., LTD.

KUNG HSING PLASTIC MACHINERY CO., LTD.
بلد: Taiwan
هاتف: 886-5-2374466
فاكس: 886-5-2376971 /886-5-2381029
الشخص الذي يمكن الاتصال به: Kun Lin Tsai

MODEL   KS-MH45+50
KS-MH50+55
KS-MH55+75
FEATURE MAX. FILM WIDTH   600 mm   800 mm   1200 mm
MATERIAL TO BE USED   HDPE / CACO3 / RECYCLED MATERIAL
THICKNESS OF FILM   0.015~0.15 m/m
MAX. EXTRUSION OUTPUT   100 kg/hr   165 kg/hr   275 kg/hr
SCREW DIA.   45 mm ø × 1
50 mm ø × 1
  50 mm ø × 1
55 mm ø × 1
  55 mm ø × 1
75 mm ø × 1
EXTRUDER SCREW L/D   30 : 1
SCREW / BARREL MATERIAL   SACM 645 STEEL WITH HARD WITH NITROGEN TREATMENT
BARREL COOLING   1/4 HP × 3
½ HP × 1
  1/4 HP × 1
½ HP × 4
  ½ HP × 7
DRIVING MOTOR   25 HP × 1
30 HP × 1
  30 HP × 1
40 HP × 1
  40 HP × 1
75 HP × 1
HEATER CAPACITY   35 kw   40 kw   50 kw
DIES (mm)   ø 60 ~ 75 mm   ø 90 ~ 120 mm   ø 150 ~ 175 mm
TEMPERATURE CONTROL   11 ZONES   12 ZONES   13 ZONES
COOLING EQUIP   5 HP   5 HP   7½ HP
TAKE-UP UNIT TYPE   FIXED TYPE HORIZONTAL OSCILLATING TAKE-UP UNIT
PINCH ROLLER (mm)   ø 165 × 650L   ø 165 × 850L   ø 165 × 1300L
TAKE-UP MOTOR   1 HP   1 HP   2 HP
TAKE-UP SPEED   12 ~ 120   12 ~ 120   12 ~ 120
SUB-PINCH ROLLER (mm)   100 ø × 650L   100 ø × 850L   140 ø × 1300L
GUIDE MOTOR   15 kg/cm   20 kg/cm   30 kg/cm
WINDING UNIT FWC TYPE   ONE STATION SURFACE WINDER WITH AUTOMATIC BOBBIN CHANGE
DIA. OF FILM WOUND-UP ROLL   800 mm
EFFECTIVE WIDTH   600 mm   800 mm   1200 mm
WINDER MOTOR   1 HP   1 HP   2 HP
DIMENSION (L×W×H) (M)   5.0×2.5×5.0   5.4×3.2×6.0   6.3×3.2×8.5
OPTIONAL DEVICE
Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with
Automatic Cooling Ring
PIB Pump System (For LDPE/LLDPE)
*Specifications are subject to change without notice for improvement.
