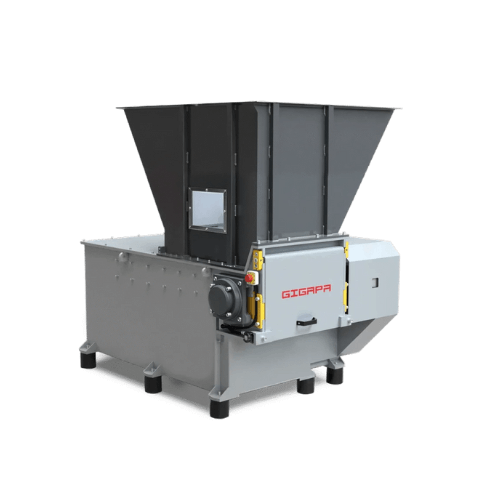

Single-Shaft Shredder-GSS-F

تصنيف: Shredders and Crushers

Nantong GIGAPA Technology Co., Ltd.

بلد: China

هاتف: 18019665417

الشخص الذي يمكن الاتصال به: Wujingjing

الاستفسار الآن

The motor drives a medium-ratio gear reducer through V-belts, which then rotates the cutter shaft. The rotating blades on the shaft tear materials and create shearing action against stationary blades. The single-shaft shredder material is carried into the chamber – when particle size becomes smaller than the screen mesh, it falls through; otherwise, it gets recirculated for further shredding. The unique shredding mechanism enables the single-shaft shredder to process large lump materials and even compressed material bales. Operating at medium-low speed provides high torque and efficiency. The equipped screen mesh effectively controls output particle size. These advantages give it wide applicability, making it a frequent choice in various solid waste recycling projects.

Plastic	plastic sheets, pipes, films, pallets, household appliance shells, beverage bottles, woven bags, and other plastic products.
Wood	waste wood, wood scraps, wooden molds, wooden pallets, wooden doors, wooden tables and chairs, etc.
Paper	office paper, wrapping paper, cardboard, books, paper trays, etc.
Fabric and leather	leather scraps, synthetic fiber cloth, cotton cloth, textile materials, carpets, clothes, curtains, etc.
Metals	aluminum scraps, aluminum cans, aluminum profiles, etc.
Others	colored steel tiles, sponges, foam, latex, fakes, substandard goods, expired items, etc.

Model	GSS-F206	GSS-F308	GSS-F310	GSS-F312	GSS-F314	GSS-F415
Crushing chamber size (mm)	500×570	815×770	815×970	815×1170	815×1370	1100×1470
Swing diameter (mm)	φ224	φ392	φ392	φ392	φ392	φ480
Mesh aperture (mm)	φ40	φ40	φ40	φ40	φ40	φ40
Motor power (kW)	18.5	37	45	55	75	110
Dimensions (L×W×H) (mm)	1880×1300×1730	2810×1770×2120	2810×1970×2120	2810×2490×2120	2810×2710×2120	3700×2840×2530
Overall weight (kg)	Approx 1600	Approx 4000	Approx 4300	Approx 5300	Approx 5900	Approx 11400

The above models are standard universal models. If you require other models, please contact our staff, and we can also provide customized services according to your needs.

1. High Cost-effectiveness
High hardness, wear-resistant, can be reused multiple times by replacing the angle

2. Good Stability
Unique liquid and debris channels, protecting the hydraulic system from interference.

3. High Safety
Fixed knives can not only be adjusted but also locked, effectively preventing collision with knives.
