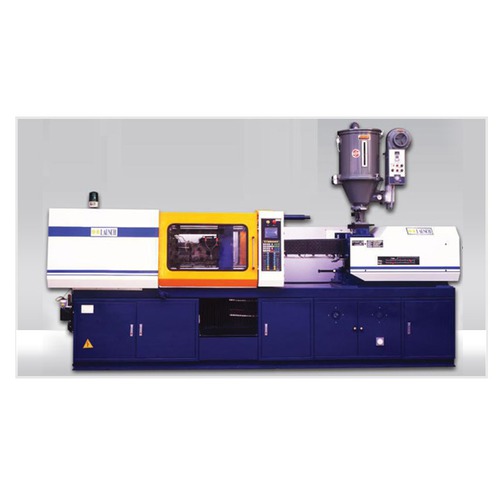

Name: H Series (Horizontal Toggle System)
Brand: LAUNCH MACHINERY WORKS CO., LTD.

تصنيف: Injection Molding Machine

LAUNCH MACHINERY WORKS CO., LTD.

بلد: Taiwan

هاتف: 886-2-22980855

فاكس: 886-2-22980655

الشخص الذي يمكن الاتصال به: Mr. Xu

الاستفسار الآن

Machine Features: All Machine parts and equipments are guaranteed to be imported from Europe, USA and Japan.

Stationery Platen and Movable Plated

All plated is through analysis by CAE technology to minimizing platen warping and ensure trigh rigidify for mold platen.

Toggle features

Five point slant toggle mechanism structure with high harden steel material to ensure toggle mechanism stronger and extend toggle life.

Mold Clamping with breaking system and mold adjustment gear type system.

After auto mold adjustment is complete, the clutch of breaking system is interlock for the mold adjustment system to prevent mold clamping force unstability and make sure product diamension make lasting.

Tie Bar

Tie Bar uses pre-tensioned design to promote durability and increase stronger and decrese tie bar broken.

Screw Charging Stand

Injection unit uses double cylinder injection design to ensure stably and stronger injection pressure.

Nozzle Stand

Nozzle Stand uses "T" shape sloted design to ensure high rigidy and stable. No need to move the nozzle stand in order to change barrel.

Machine Base

All machine base are using solid steel welding with support bar design for stronger and rigrdy machine base.

Silicone injection
P.E.T. injection
Bakelite injection
Melamine injection
Multi-color mixing injection
Acrylic injection
Rigid P.V.C. injection
Four-cylinder injection
Gas-assisted injection

HORIZONTAL TOGGLE MODEL OF HORIZONTAL
LCH-HXX-A-B
ITEM			MODEL	LCH-H80			LCH-H90			LCH-H120			LCH-H160			LCH-H250
射出部份	INJECTION UNIT
螺旋桿直徑	Screw Diameter		mm	S	M	L	S	M	L	S	M	L	S	M	L	S	M	L
				25	28	32	30	32	36	34	36	40	36	40	45	45	50	55
射出壓力	Injection Pressure		kg/cm 2	2150	1714	1313	2334	2052	1621	2325	2074	1680	2738	2218	1753	2527	2047	1691
射出率 Injection Rate		一般 General	cm 3 /sec.	40	50	65	57	65	83	73	82	101	78	97	122	106	131	159
		快速 High Speed		95	119	156	110	125	159	140	158	194	149	184	233	178	219	266
理論射出容積	Theoretic Shot Volume		gr	64	80	104	113	129	163	145	163	201	203	251	318	318	393	475
射出重量 (PS)	Injection Weight (PS)		gr	57	72	94	102	116	146	131	146	181	183	226	286	286	353	427
			oz	2	2.5	3.3	3.6	4.1	5.1	4.6	5.1	6.3	6.4	7.9	10	10	12	15
鎖模部份	CLAMPING UNIT		左右肘節 HORIZONTAL TOGGLE
鎖模力	Clamping Force		Ton	80			90			120			160			250
開模行程	Clamping Stroke		mm	200			270			300			320			380
脫模行程	Ejector Stroke		mm	60			75			75			110			110
支柱內距	Space Between Tie Bar		mm	300 × 230			340 × 290			370 × 290			425 × 355			475 ×395
夾模厚度	Mold Thickness		mm	70-330			80-350			100-400			150-520			180-560
動力部份	POWER UNIT
電機馬達 Pump Motor		一般 General	HP(KW)	10(7.5)			15(10)			20(15)			25(18.5)			30(22)
		快速 High Speed		25(18.5)			25(18.5)			30(22)			40(30)			50(37)
電熱容量	Heater Capacity		KW	3.2			6.3			6.9			8.8			10.6
泵浦壓力	Pump Pressure		kg/cm 2	140			140			140			140			140
溫度控制	Thermo Control		point	4			4			4			4			4
寸法	MEASUREMENTS
機械尺寸 Machine Size (L×W×H)		A 型 A Type	m	3.2×0.95×1.6			4.5×1.0×1.7			4.6×1.1×1.8			5.0×1.2×1.8			5.5×1.2×1.9
		B 型 B Type		3.0×0.95×1.6			3.8×1.1×1.7			4.1×1.2×1.7			4.8×1.3×1.8			5.3×1.4×1.9
機械重量	Machine Weight		kg	2200			3160			3600			5300			6300
油箱容量	Tank Capacity		l	125			200			240			410			460

ITEM			MODEL	LCH-H300			LCH-H400			LCH-H450			LCH-H500			LCH-H600
射出部份	INJECTION UNIT
螺旋桿直徑	Screw Diameter		mm	S	M	L	S	M	L	S	M	L	S	M	L	S	M	L
				55	60	65	65	70	75	75	80	85	75	80	85	85	90	95
射出壓力	Injection Pressure		kg/cm 2	2221	1867	1591	1968	1697	1478	1672	1470	1302	1942	1707	1512	1648	1470	1319
射出率 Injection Rate		一般 General	cm 3 /sec.	133	158	186	218	253	290	279	318	359	275	313	353	428	480	535
		快速 High Speed		294	350	411	361	419	481	486	553	624	553	629	710	793	889	990
理論射出容積	Theoretic Shot Volume		gr	712	848	995	995	1154	1325	1325	1507	1701	1545	1758	1985	2552	2861	3118
射出重量 (PS)	Injection Weight (PS)		gr	641	763	895	895	1039	1192	1192	1356	1531	1391	1583	1787	2297	2575	2869
			oz	22	27	31	31	36	42	42	47	54	49	55	63	80	90	100
鎖模部份	CLAMPING UNIT		左右肘節 HORIZONTAL TOGGLE
鎖模力	Clamping Force		Ton	300			400			450			500			600
開模行程	Clamping Stroke		mm	470			520			580			650			820
脫模行程	Ejector Stroke		mm	150			180			180			230			250
支柱內距	Space Between Tie Bar		mm	550 × 460			620 × 500			695 × 575			760 × 760			860 ×860
夾模厚度	Mold Thickness		mm	200-680			250-720			250-800			250-850			300-900
動力部份	POWER UNIT
電機馬達 Pump Motor		一般 General	HP(KW)	40(30)			50(37)			60(45)			75(60)			100(75)
		快速 High Speed		65(45)			75(60)			100(75)			120(90)			120(90)
電熱容量	Heater Capacity		KW	14.2			16.7			21.6			27.2			30
泵浦壓力	Pump Pressure		kg/cm 2	140			140			140			140			140
溫度控制	Thermo Control		point	5			5			5			5			5
寸法	MEASUREMENTS
機械尺寸 Machine Size (L×W×H)		A 型 A Type	m	7.2×1.3×2.0			7.5×1.4×2.4			7.6×1.6×2.4			7.8×1.9×2.4			10.0×2.2×2.6
		B 型 B Type		6.3×1.6×2.0			6.9×1.8×2.1			7.2×1.9×2.1			7.8×1.9×2.4			10.0×2.2×2.6
機械重量	Machine Weight		kg	10000			12000			16000			22000			31000
油箱容量	Tank Capacity		l	660			875			1045			1450			1730
The technical data are not binding and may be changed without notice. 規格變更不另行通知
