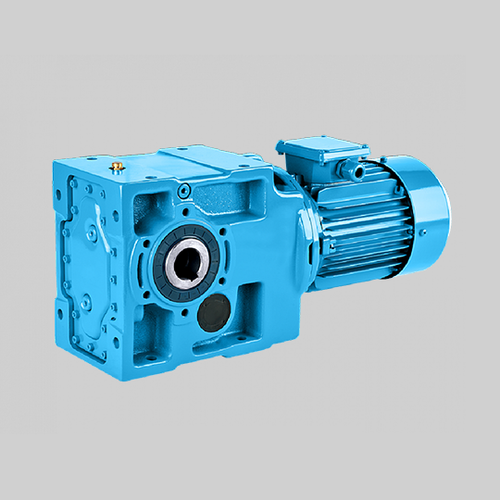

K Series Geared Motor

Product Description

Right-angle drive unit.

The K series geared motor is an integrated helical-bevel gear reducer. Compared with a conventional worm gearbox, it provides higher transmission efficiency and higher-strength gear and housing structures, improving service life and reliability. Its modular structure permits flexible combinations and connections at both the output and input ends.

The basic housing provides three reduction stages. When an additional, higher reduction ratio is required, two housings can be connected to provide up to six reduction stages for different applications.

The input end can be combined with different electric motors, servo motors, and variable-frequency drives for drive control.

The output end is available with different connection methods, including solid shaft, splined shaft, and hollow shaft.

Product Features

• Gears are made of carburizing steel
• High transmission efficiency
• High radial load
• Low noise
• Long service life

Application Markets

• Steel mills
• Port machinery
• Plastics and rubber machinery
• Automated machine tools
