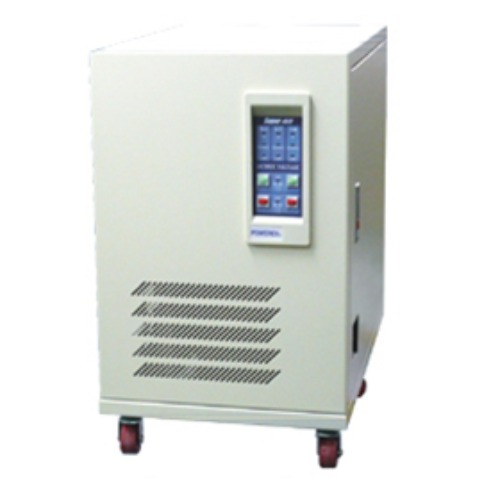

E-1 Intelligent Transformer AVR / Stabilizer (PS-B)

E-1 Intelligent Transformer AVR / Stabilizer (PS-B)
تصنيف: Three phase Automatic Voltage Regulator / Stabilizer
CNE ELECTRICAL CO., LTD.
CNE ELECTRICAL CO., LTD.
بلد: Taiwan
هاتف: 03-341-1860
فاكس: 03-341-1826
الشخص الذي يمكن الاتصال به: Mr. Allen Chen
الاستفسار الآن
  • Start over voltage protection
  • Big range high/low voltage protect device
  • Humanized anti-mistake circuit design
  • Intelligent logic voltage regulation design
  • Innovative panel design
  • Electronic double-circuit On/Off design
  • Dip-switch protection setting
  • Double over-current protection design
  • Separated voltage regulation design
  • Self-detecting function
  • Instant tripping protection device
  • Module design
  • Phase loss protection
  • Short circuit protection
Model No. (PS-B) 312NY 315NY 312YNY 315YNY
Capacity 12KVA 15KVA 12KVA 15KVA
Input Voltage 3ψ4W 220/380V 3ψ3W 380V
Output Voltage 3ψ4W 127/220V 3ψ3W 220V
Input Range ±15%
Output Accuracy ≦1%
Frequency 50/60Hz±5%
Response Time ＜0.1 second
Waveform Distortion No distortion
Power Factor 0.95～1
Efficiency ≧98%
Overload 150% for 10 seconds
Protection High Voltage Standard Feature (can be Various / Multi / Big range pre-set and LED displayed)
Low Voltage Standard Feature (can be Various / Multi / Big range pre-set and LED displayed)
Phase Failure Standard Feature (can be Various / Multi / Big range pre-set and LED displayed)
Overload Standard Feature (input and output double protection)
Short Circuit Standard Feature
Bypass Standard Feature
Indicators Power Standard Feature
Voltage Standard Feature
Abnormal Standard Feature
Environment Temperature: 0℃~45℃ Humidity: 0%~95% RH (Non-Condensing)
Dimension WxHxD (cm) 36x63x58
