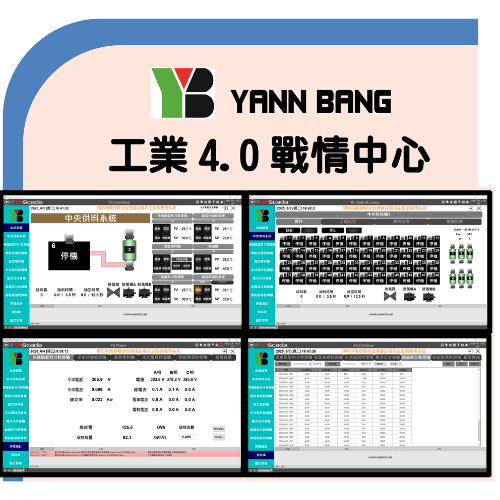

WT(Wise-Transit) Net 4.0
Rapid and efficient data for analysis to provide well management.
First Step heading to Smart Factory. Yann Bang, over 45 years’ experiences, providing BEST Service.

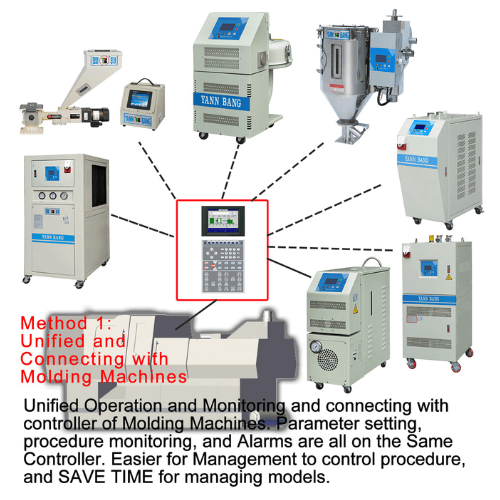

Method 1: Unified and Connecting with Molding Machine
Unified operation and monitoring and connecting with controller of molding machines. Parameter setting, procedure monitoring, and alarms are all on same controller. Easier for management to control procedure, and save time for managing models.

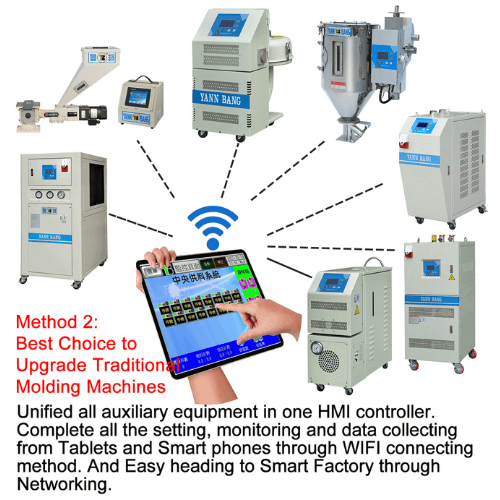

Method 2: Best Choice to upgrade Traditional Molding Machine
-
Unified all auxiliary equipment in one controller. Complete all the setting, monitoring and data collecting from equipments by app of Tablets and Smart phones through WIFI connecting method. And Easy heading to Smart Factory through Networking.
Mold Temperature Controller (YBMI/YBMD)
Steady controlled temperature makes plastic molding accurate in size and consistent with quality. Accurate mold temperature solves the problem of plastic flow patterns, reducing flow and weld lines, gloss appearance, record grooves effect, silver streaking, stress-whitening, warping, and etc....
P.I.D temperature controllers are used for accurate control of temperature within±1℃.
Two-step-heating selector makes rapid temperature increasing possible when require thus saving time and power specially start up in the morning. Patented “Heat-insulated” design improves your safety, extend the machine’s lifetime and make maintenance more efficiently.
-
YBMI : By oil, suit for long-term continuous operation, keep the temperature steady, no flash on tiny and thin products, and no corrosion. However, the heater may be damaged if you do not use the thermo oil correctly or change oil routinely. Recommend to choose oil-type mold temperature controller when your required temperature is 150℃ or above.
-
YBMD : By water, heating up faster, cooling better, harmless to your mold and more economic than oil type for maintenance and cost. However, the water boiling point is low and the element of different water may occur corrosion or limescale to affect the heat exchange and products quality. Recommend to choose water-type mold temperature controller when your required temperature is 150℃ or below.
القادوس المعزول الفريد يمكنه تحمل التسخين بشكل متكرر في درجات الحرارة العالية. إجراءات أمنية مشددة وإزالة الرطوبة بشكل جيد. خفيفة الوزن سهلة التركيب على آلة التشكيل مباشرة. تصميم وحدة واحدة غير القابل للصدأ والتلميع خالٍ من الغبار ونظيف.
التصميم المنفصل للمنفاخ وقادوس الشفط بقوة حصان مناسب للنقل لمسافات طويلة. يحافظ ذلك على مادة الراتنج الخاصة بك بعيدًا عن التلوث ويمدد نقاط الشفط بسهولة للاحتياجات المستقبلية.
1. استيراد قرص العسل من ألياف السيراميك ، وتجاوز نقطة الندى تحت -40 درجة مئوية من الهواء الجاف
2. تحكم ذكي في المعالجات الدقيقة وواقي ممتاز من الحرارة الزائدة.
3. دقة تحكم في درجة الحرارة PID.
4. مرحل الحالة الصلبة المصمم جيدًا (SSR) وأجهزة الحماية.
Rapid Dryer (RD)
Without replace your old hopper dryer, use this new dryer to dry faster with better quality and to upgrade production more efficiently.
1. Wide application. Suit to numerous material such as PC, PMMA, PA46, PPS, NYLON and some PET/PETG.
2. Save time and energy. Patented technology significantly shortens the drying time. Normally NYLON takes four hours to dry. Work with Yann Bang’s rapid dryer (RD), it only takes two hours to dry completely and ready to use. RD can decrease 50% of drying hours and save 50% of energy for you.
3. Upgrade energy save. Combine with Yann Bang’s Energy-efficient Hopper dryer can save more energy obviously.
4. Increase yield rate of output. Moisture content can be reduced to 0.02% (depend on the initial moisture content of resin), improve the drying quality of resin, and lower defective products.
5. Easy maintenance. Install with plug-in air filter and dust collector (oil collector) that you can unload easily to clean and replace parts.
يمزج الماسترباتش مع الراتنج البكر في قادوس الآلة تلقائيًا. لا تحتاج إلى تلوين الراتينج مسبقًا أو خلطه مسبقًا بعد الآن. إنه يوفر القوى العاملة والراتنج وتكاليف المخزون ويحافظ على بيئة العمل نظيفة.
تقوم الوحدة بخلط جرعات الماسترباتش ، والإضافات ، ومساحيق التدفق الحر ، والراتنج المعاد طحنه ، والراتنج البكر لضمان الخلط المتسق والدقيق الذي ينتج عنه جودة أفضل للمنتج وأقل رفضًا.
