نموذج | حجم الدولية | حجم طلقة النظرية | قوة لقط | الفضاء بين أشرطة التعادل | قالب فتح السكتة الدماغية |
400MBE | 4000H-2045 | 1502 | 400 | 700x700 | 1500 |
500MBE | 5000H-2862 | 1910 | 500 | 780x780 | 1750 |
600MBE | 6000H-4462 | 2767 | 600 | 880x880 | 1800 |
850MBE | 8500H-4971 | 3613 | 850 | 1000x1000 | 2000 |
1050MBE | 10500H-7746 | 4752 | 1050 | 1100x1100 | 2350 |
1450MBE | 14500H-9614 | 7433 | 1450 | 1300x1300 | 2460 |
1850MBE | 18500H-15369 | 11486 | 1850 | 1600x1600 | 2600 |
2300MBE | 23000H-25143 | 18158 | 2300 | 1800x1800 | 2800 |
DIRECT CLAMPING FORCE BUILT UP BY MULTIPLE CYLINDERS

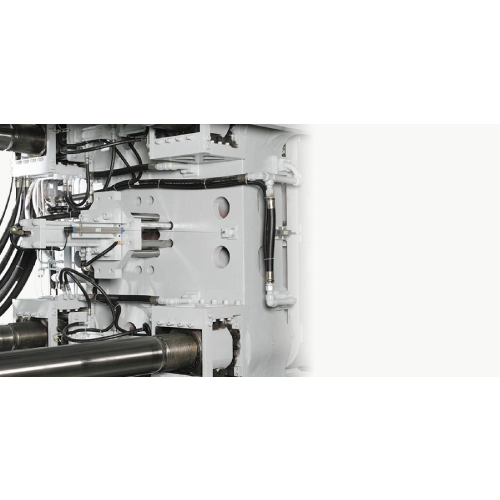

The actuator of the clamping force is installed on the fixed platen of the conventional two platens injection molding machine. The design of the MBE model has four sets of traveling cylinders inside of the movable platen to close the mold and to build up the clamping force at the center of the platen. Thus, the force is distributed evenly on the platen and creates zero deflection when the injection force activates. The clamping force makes a full release before the mold opens, so there is no issue of failed opening such as a mechanical deformation of the toggle under the conditions of a long cycle. The standard feature of the proportional valve with LVDT feedback achieves high precision of mold open-end position.
تغيير مرن لفتح السكتة الدماغية وسماكة العفن
شوط فتح طويل متاح لتوفير مرونة عالية للقالب الذي يتطلب سمكًا أطول ويمكن تمديده إذا لزم الأمر. يمكن تعديل الحد الأقصى لارتفاع القالب أو ضوء النهار أو شوط القاذف بناءً على طلب خاص. يتم تثبيت أسطوانات اجتياز مزدوجة في الزاوية المقابلة للصفيحة الثابتة لتقصير دورة الجفاف ولتسهيل الوصول إلى منطقة التطهير والفوهة.
