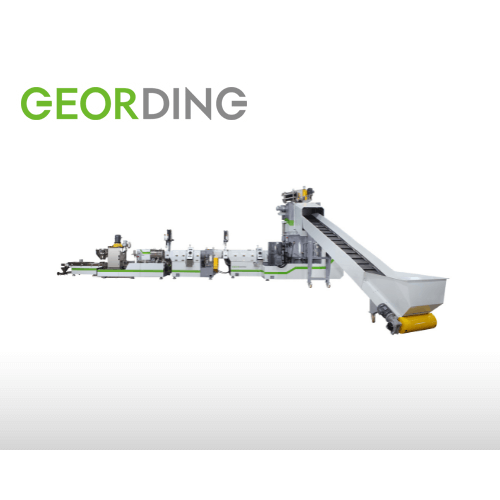

INTEGRATES SHREDDING, EXTRUDING AND PELLETIZING INTO ONE MACHINE
- The integrated cutter helps compact the material to reduce its volume and increase its density. This process aids in preheating, mixing, and drying the material, preparing it for further processing and recycling.
- High productivity, low noise.
- Preheating the raw material can enhance the production efficiency of the extruder. Compared to traditional crusher , it produces less noise and has a capacity that exceeds traditional models by more than double.
- Integrating multiple functions into one machine simplifies maintenance and upkeep by centralizing these tasks. It also saves space within the factory layout.
- Two stages extruder with ventilation holes, providing three stages of venting.This is a standard feature of GEORDING. The design of the ventilation holes helps to prevent the formation of bubbles or excessive internal pressure during the extrusion process, thereby improving product quality.
- Two stages extruder offers higher filtration efficiency.With two-stage filtering process. This effectively removes impurities from the raw material, reducing contaminants, thereby improving the quality and consistency of the final product. Additionally, it helps minimize wear and blockage in the extruder, extending the extruder lifetime.
Model |
GD-85TS-3IN1 |
GD-100TS-3IN1 |
GD-120TS-3IN1 |
GD-150TS-3IN1 |
GD-175TS-3IN1 |
Shredder |
|||||
Conveyor |
1HP*4000(L)*400(W) |
2HP*6000(L)*600(W) |
2HP*6000(L)*800(W) |
2HP*6000(L)*800(W) |
2HP*6000(L)*800(W) |
Size |
Ø760 mm |
Ø1000 mm |
Ø1000~1500 mm |
Ø1000~1800 mm |
Ø1000~2000 mm |
Motor |
40HP |
75HP |
100HP |
125HP |
150HP |
Main Extruder |
|||||
Screw Diameter L/D Ratio |
32 |
36 |
36 |
36 |
36 |
Main Power |
50~75HP |
125~150HP |
150~250HP |
200~400HP |
300~600HP |
Temp. Control |
6 zone |
6 zone |
7 zone |
8 zone |
8 zone |
Heating Capacity |
35KW |
42KW |
65KW |
90KW |
120KW |
Hydraulic Power |
3HP |
5HP |
5HP |
7.5HP |
7.5HP |
Max. Outpou/Hr |
100~250kg |
250~500kg |
400~800kg |
800~1500kg |
1000~1800kg |
Sub-extruder |
|||||
Screw Diameter L/D Ratio |
8~10 |
8~10 |
8~10 |
8~10 |
8~10 |
Power |
20~40HP |
40~50HP |
40~60HP |
60~100HP |
60~150HP |
Temp. Control |
3 zones |
4 zones |
5 zonesP |
6 zones |
6 zones |
Heating Capacity |
18KW |
22KW |
25KW |
37KW |
58KW |
Die Face Cutter |
|||||
Power |
2HP |
3HP |
3HP |
5HP |
7.5HP |
Separator |
|||||
Power |
10HP |
10HP |
10HP |
15HP |
20HP |
Vibration Motor |
|||||
Motor |
1/4HP*2 |
1/4HP*2 |
1/4HP*2 |
1/4HP*2 |
1/2HP*2 |
Blower |
|||||
Power |
5HP |
5HP |
7.5HP |
7.5HP |
10HP |
Storage Barrel |
|||||
Capacity |
1000L |
1000L |
1000L |
1000L |
1000L |
جهاز يدوي مفتوح لخزان التقطيع عندما يتعلق الأمر بانقطاع التيار الكهربائي.
يقوم الطارد الفرعي بالترشيح والتهوية للمرة الثانية للمواد الأكثر تلوثًا.
إطار قطع وجه القالب مصنوع في SUS304 لمنع الصدأ والتآكل. تعدل السكاكين تلقائيًا تصميم براءة اختراع. يتم ضبط السكين ولوحة القالب دائمًا على 90 درجة. لا حاجة للتعديل بشكل متكرر.
المجفف عالي السرعة عازل للصوت مع تصميم مانع للتسرب بطبقتين. يمكن لخزان المياه السفلي تجميع مياه الصرف وتصفية الشوائب.
نافذة رؤية التقطيع مع ممسحة النافذة تساعد المشغل على المراقبة في أي وقت.
يوفر الطارد الرئيسي أفضل التغذية والخلط والتهوية والتدفئة والسعة حيث تم تصميمه على أساس المواد الخام الخاصة بالعميل والسعة ودرجة التركيب.
تجمع مضخة تدوير المياه مياه الصرف الصحي وبخار الماء من التكوير والمجفف عالي السرعة.
يجمع الإعصار الكريات ويقلل من التأثير بعد المجفف عالي السرعة قبل الغربال الاهتزازي التالي.
الغربال الاهتزازي ثلاثي الطبقات سهل التنظيف والتفكيك والتجميع. يمكن تخصيص قطر الحفرة.
منفاخ بتصميم بلا ضوضاء.
![]() |
![]() |
PE Agricultural Films | PE Agricultural Films |
![]() |
![]() |
PE, LDPE, HDPE Film | PE, LDPE, HDPE Film |
