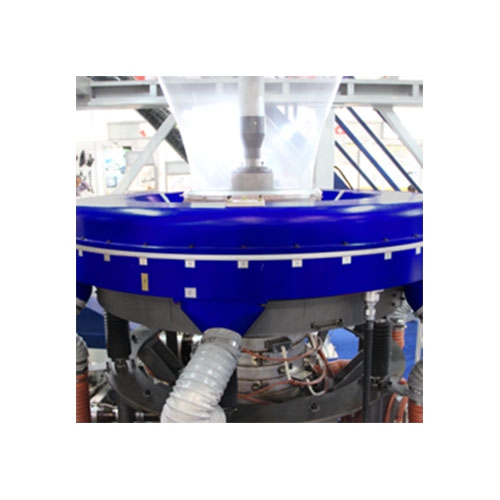

Multi layer blown film making line
  • Lower production cost/ higher profit margin into the film middle layer UP TO 100% of recycled material or up to 70% of filler CACO3
  • Layers Max. idstribution up to 1:3:1
  • Excellent quality of outer layer from virgin raw
  • Excellent sealing
Model META 50-55-50-1300 META 65-80-65-2100 META 653-502-1800
EXTRUDER (B) (B) (B+D)
Screw Dia. Ø55 mm Ø80 mm Ø50 mm *2
Screw Length L/D 28/1 (Barrier Screw) 28/1 (Barrier Screw) 28/1 (Barrier Screw)
Barrel Material ACM2 ACM2 ACM2
Screw Material ACM2 ACM2 ACM2
Gear Material SNCM 21 SNCM 21 SNCM 21
Temperature Control Zones 3+1 4+2 (3+3) * 2
Barrel Colling System Air Cooling Air Cooling Air Cooling
Screen Filter Standard * 1 Manual Screen Changer * 1 Manual Screen Changer * 2
Max. Extrusion 80 Kgs 180 Kgs 55 Kgs * 2
Main Motor 40 HP A.C Motor with Inverter 100 HP A.C Motor with Inverter 30 HP A.C Motor with Inverter * 2
EXTRUDER (A+C) (A+C) (A+C+E)
Screw Dia. Ø50 mm * 2 Ø65 mm * 2 Ø65 mm * 3
Screw Length L/D 28/1 (Barrier Screw) 28/1 (Barrier Screw) 28/1 (Barrier Screw)
Barrel Material ACM2 ACM2 ACM2
Screw Material ACM2 ACM2 ACM2
Gear Material SNCM 21 SNCM 21 SNCM 21
Temperature Control Zones (3+1) * 2 (4+3) * 2 (4+3) * 2...A+E
(4+2) * 1.....C
Barrel Colling System Air Cooling Air Cooling Air Cooling
Screen Filter Standard * 2 Manual Screen Changer * 2 Manual Screen Changer * 3
Max. Extrusion 60 Kgs *2 120 Kgs *2 110 Kgs * 3...A+C+E
100 Kgs * 2 ...A+E, 50kgs *1...C
Main Motor 20 HP A.C Motor with Inverter * 2 60 HP A.C Motor with Inverter * 2 60 HP A.C Motor with Inverter * 3
Inflation Spiral Dies 300 OR 400 Ø MM (A+B+C+D+E)
Control Zone 5 8 6
Thickness of Tube 0.02-0.15 mm 0.02-0.15 mm 0.02-0.15 mm
Width of Tube 1200mm/Max 2000mm/Max 1700mm/Max...PE
1300~1600mm/Max...PA
COOLING EQUIPMENT
Aluminum Alloy Air Ring Low Pressure High
Air Velocity Design Air Ring
Low Pressure High Air Velocity Design Air Ring
Air Blower 10 HP A.C with Inverter 20 HP A.C with Inverter 20 HP A.C with Inverter
TAKE-UP MACHINE
Rubber Roller Ø160 * 1300 L/mm * 1 Ø210 * 2100 L/mm * 1 Ø210 * 1800 L/mm * 1
Hard Chromium Steel Roller Ø160 * 1300 L/mm * 1 Ø210 * 1800 L/mm * 1 Ø210 * 1800 L/mm * 1
Aluminum Guide Roller Ø75 * 1300 L/mm * 4 Ø100 * 2100 L/mm * 4 Ø100 * 1800 L/mm * 4
Take-up Motor 1 HP A.C with Inverter 2 HP A.C with Inverter 2 HP A.C with Inverter
Take-up Speed 8~60 M/Min/Max 6~40 M/Min/Max 6~40 M/Min/Max
Bubble Stabilizer 1 Set 1 Set 1 Set
Expand Roller 1 pc 1 pc 1 pc
WINDER FBW TYPE DOUBLE WINDER FAW TYPE DOUBLE WINDER FDW TYPE FULLY AUOT. DOUBLE WINDER (SURFACE JUMBO TYPE)
Winder Motor 1HP DC TORQUE 2HP DC TORQUE 2HP AC+INVERTER
Winding Rubber Roller Dimensions Ø260 * 1300 L/mm
Ø110 * 1300 L/mm
Ø260 * 2100 L/mm
Ø110 * 2100 L/mm
Ø180 * 1800 L/mm
Aluminum Roller Dimensions Ø75 * 1300 L/mm * 1 Ø100 * 2100 L/mm * 1 Ø100 * 1800 L/mm * 1
Second Pinch Roller Motor 1HP DC TORQUE 2HP DC TORQUE 2HP DC TORQUE
Second Rubber Roller Ø110 * 1300 L/mm Ø160 * 2100 L/mm Ø160 * 1800 L/mm
Second Hard Chromium Steel Roller Ø160 * 1300 L/mm Ø210 * 2100 L/mm Ø210 * 1800 L/mm
Expand Roller 1 pc 1 pc 1 pc
Pneumatic Valves 1 Package 1 Package 1 Package
Max. Winding Dia Ø1000mm Ø600mm Ø1000mm
Max. Winding Width 1199mm 2000mm 1700mm
Machine Height 7.6~8.6 M/H 11.6 M/H 11.6 M/H
