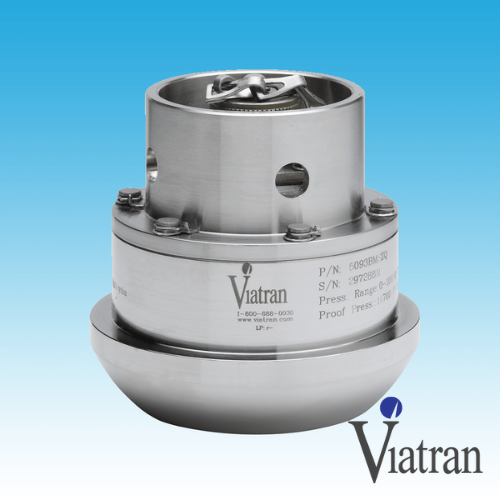

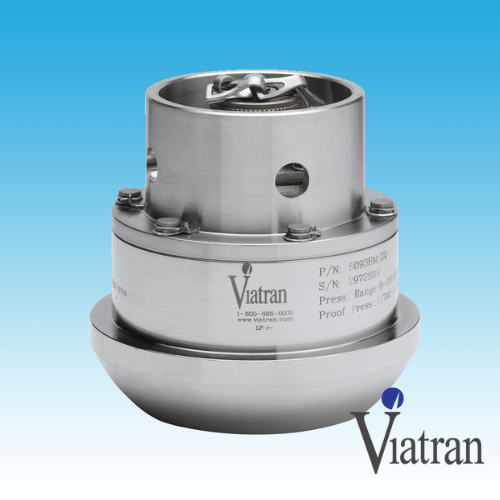

جهاز إرسال الضغط من Hammer Union

تصنيف: فيتران / الارسال الضغط

MITSUDELL CO., LTD. - Dynisco/Viatran Agent in Taiwan

MITSUDELL CO., LTD. - Dynisco/Viatran Agent in Taiwan
بلد: Taiwan
هاتف: 886-4-2631-3001
فاكس: 886-4-2631-7717
الشخص الذي يمكن الاتصال به: Harrison Chang


Features

 1502 Hammer Union Pressure Fitting
 RoHS Compliant

 ShuntCal


 PERFORMANCE
Full Scale Pressure Range
0-5K, 6K, 10K, 15K, 20K PSIS (0-345, 414, 689, 1034, 1379 bar)
Combined Accuracy (BFSL)
(Non-Linearity, Hysteresis & Repeatability)≤± 0.25% FSO
Full Scale Output (FSO)
16 mA ±1% FSO
Zero Balance
4 mA ±1% FSO
Long-Term Stability
≤±0.25% FSO per 6 months
Response Time
≤2.5 mSec to reach 90% of FSO
Compensated Temperature
40°F to 140°F (4°C to 60°C)
Operating Temperature
-40°F to 185°F (-40°C to 85°C)
Storage Temperature Limits
-67°F to 302°F (-55°C to 150°C)
Temperature Effect on Zero
≤±1% FSO per 100°F (37°C)
Temperature Effect on Span
≤±1% FSO per 100°F (37°C)

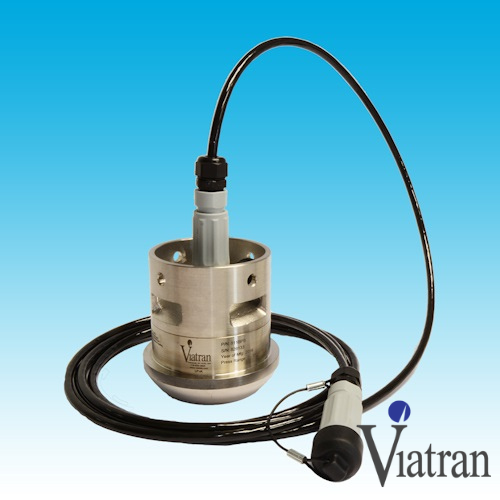

Features

 1502 Hammer Union Pressure Fitting
 RoHS Compliant
 ShuntCal
 IP-68 Rated

 High Pressure Applications


PERFORMANCE
Full Scale Pressure Ranges
0-5K, 0-6K, 0-10K, 0-15K, 0-20K PSIS
Combined Accuracy (BFSL)
(Non-Linearity, Hysteresis & Repeatability)≤ ± 0.25% FSO
Full Scale Output (FSO)
16.00 mA ±1% FSO @70°F
Zero Balance.
4 mA ±1% FSO @70°F
Compensated Temperature Range
-40°F to 140°F (4°C to 60°C)
Operating Temperature Range
-40°F to 185°F (-40°C to 85°C)
Storage Temperature Range
-67°F to 302°F (-55°C to 150°C)
Long Term Stability (%FSO)
≤ ± .25% FSO per 6 months
Thermal Effect on Zero
≤± 1% FSO per 100°F Typical
Thermal Effect on Span
≤± 1% FSO per 100°F Typical

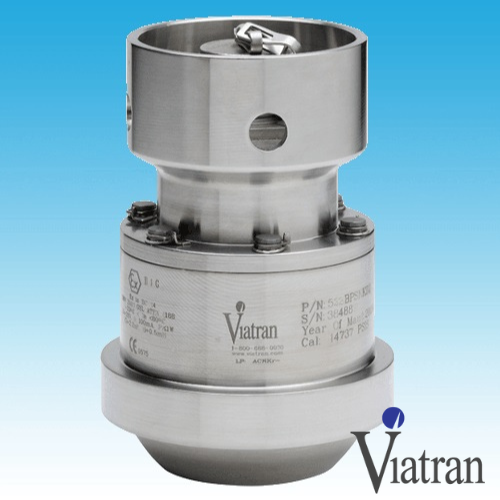

Features

 2002 Hammer Union Pressure Fitting
 Many Options available
 High Pressure Applications
 ShuntCal


 PERFORMANCE

Full Scale Pressure Ranges
0-5K, 0-6K, 0-10K, 0-15K, 0-20K, 0-25K PSIS
Combined Accuracy (BFSL)
(Non-Linearity, Hysteresis & Repeatability)≤ ± 0.25% FSO
Full Scale Output (FSO)
16.00 mA ±1% FSO @70°F
Zero Balance.
4 mA ±1% FSO @70°F
Compensated Temperature Range
-40°F to 140°F (4°C to 60°C)
Operating Temperature Range
-40°F to 185°F (-40°C to 85°C)
Storage Temperature Range
-67°F to 302°F (-55°C to 150°C)
Long Term Stability (%FSO)
≤ ± .25% FSO per 6 months
Thermal Effect on Zero
≤± 1% FSO per 100°F Typical
Thermal Effect on Span

≤± 1% FSO per 100°F Typical

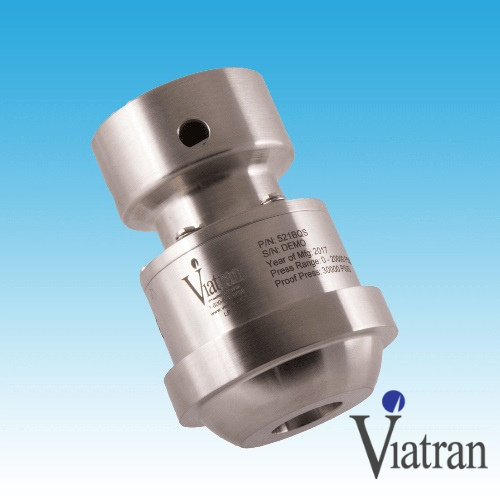

Features

 1502 Hammer Union Pressure Fitting
 ShuntCal
 High Pressure Applications
PERFORMANCE
Full Scale Pressure Range
0-5K, 10K, 15K, 20K PSIG (0-345, 689, 1034, 1379 bar)
Combined Accuracy (BFSL)
(Non-Linearity, Hysteresis & Repeatability)≤± 0.25% FSO
Full Scale Output (FSO)
5 Vdc ±1% FSO
Zero Balance
0 Vdc ±1% FSO
Long-Term Stability
≤±0.25% FSO per 6 months
Response Time
≤2.5 mSec to reach 90% of FSO
Compensated Temperature
-20°F to 185°F (-29°C to 85°C)
Operating Temperature
-40°F to 250°F (-40°C to 121°C)
Storage Temperature Limits
-67°F to 302°F (-55°C to 150°C)
Temperature Effect on Zero
≤±1% FSO per 100°F (37°C)
Temperature Effect on Span
≤±1% FSO per 100°F (37°C)
