PURPOSE OF MACHINE

  • This machine is for the Laminating process that using solvent-based adhesive.
  • Reliable tension control with mature lamination process able to make high-end product such as retort, sterilize and medical pouches.
  • The gravure coating station allows high precision and consistency on coating weight.
  • Efficient drying tunnel has high performance on vaporizing solvent completely to keep the product safely.
  • Various options of heating solution for drying tunnel are available.
  • Energy-saving system is an option to help decreasing carbon footprint and the cost on production.

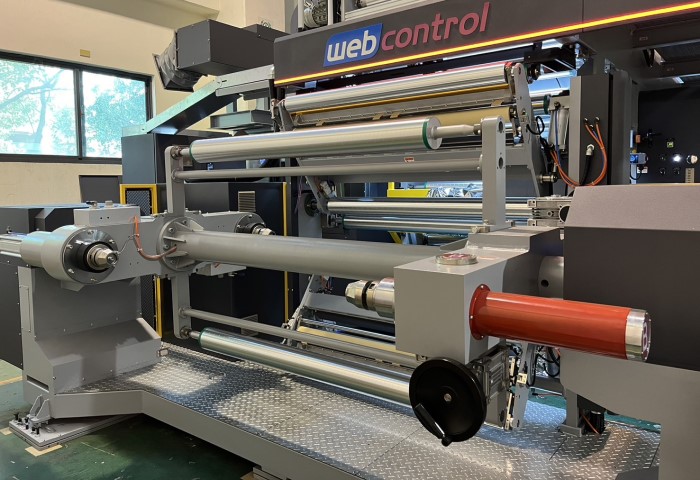

Shaftless-insert Type Bushing

  • Adopt sleeve type chuck with tapered cone to hold core firmly with long stroke feature.

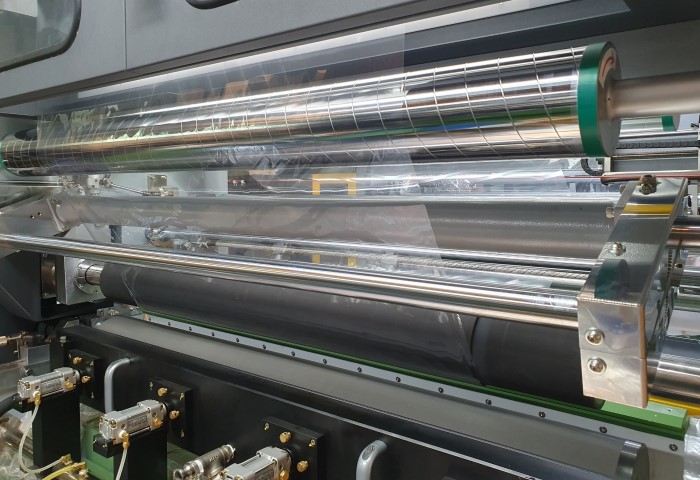

Smoothing Roll

Smoothing Roll

  • The smoothing roll is operated by air cylinder.
  • An indexing handle provides micrometric adjustment of contact. Contact position is displayed easily.
  • Smoothing roll features synchronized motion with pressure roll rising and is separated by material.

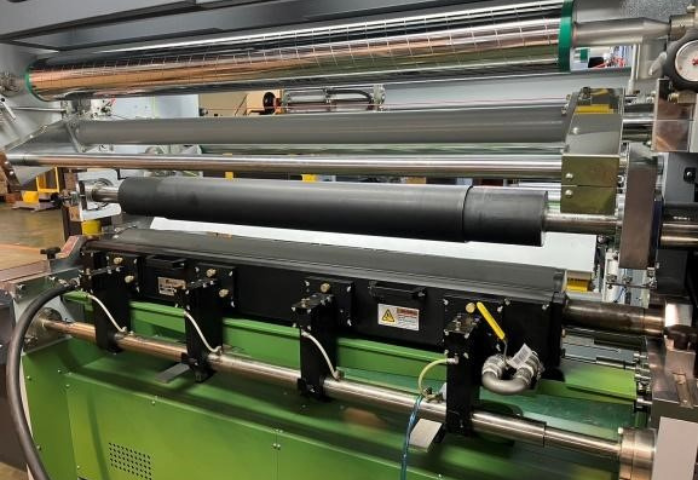

Chamber Doctor Blade System

Chamber Doctor Blade System

  • No glue splashing during high speed operation.
  • Minimum solvent odor.
  • Easy to install and clean.
  • Minimum variation of liquid viscosity.
  • Long service life of doctor blade.

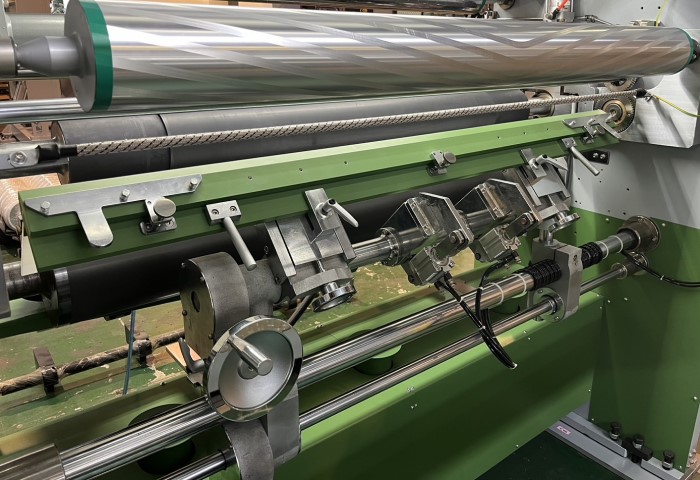

Open Doctor Blade System

Open Doctor Blade System

  • Could be adjusted forward, backward, up, down, left and right.

Double-layer Adhesive Pan

Double-layer Adhesive Pan

  • The outer layer is equipped with an air suction device for sucking the solvent smell, which avoids odor splashing.

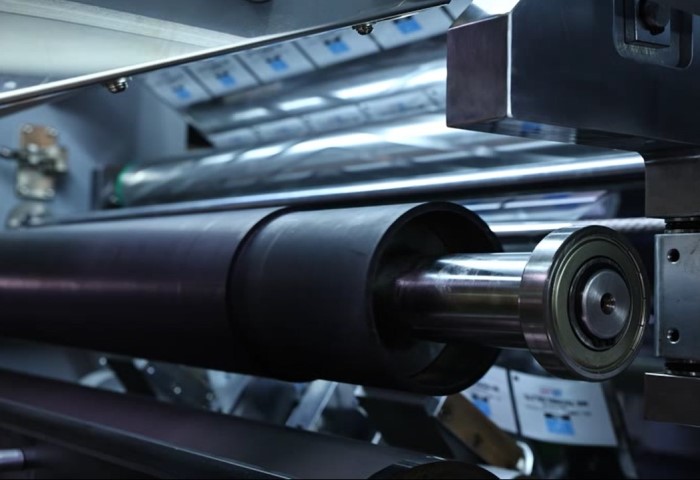

Sleeved Impression Roller

Sleeved Impression Roller

  • Quick changeover

Individual Motor Drive

Individual Motor Drive

  • The coating rubber roller and the glue-coating mesh roller are driven by individual motors which avoids uneven coating resulting from slipping between the gluing roller and the material.

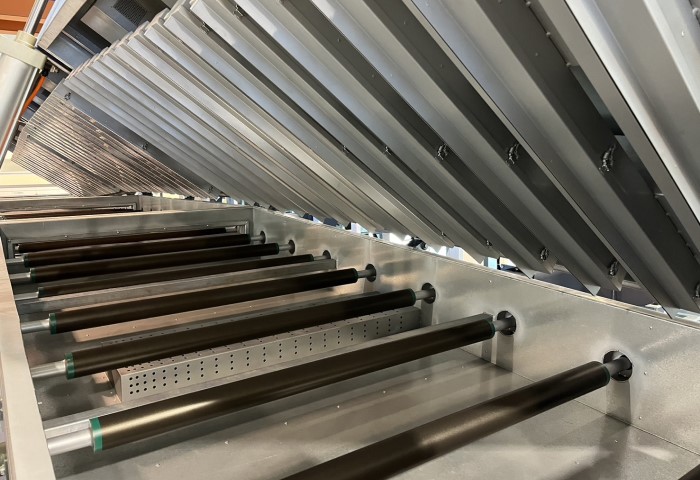

Drying Mechanism

Drying Mechanism

  • The drying mechanism has 3 zones with a total length of 8.1 meters.
  • The 1st zone located at the right employs V shaped nozzles for uniform hot air blowing; the 2nd and 3rd zones are located at the left and employ multi-holes board for high efficiency drying.
Model DL-S1000 DL-S1300
Machine speed 200, 250 M/min 200, 250 M/min
Working speed 180-230 M/min 180-230 M/min
Laminating material All kinds of web All kinds of web
Drying system Electric heater (Gas, steam or thermal oil as optional) Electric heater (Gas, steam or thermal oil as optional)
Drying tunnel length 2.7M x3 zones (8.1M) / 3.6M x 3 zones (10.8M) 2.7M x3 zones (8.1M) / 3.6M x 3 zones (10.8M)
Guide roller for drying tunnel Ø90 mm, surface chrome plated. Driven by timing belt. Ø90 mm, surface chrome plated. Driven by timing belt.
Coating system Gravure type, individual motor drive Gravure type, individual motor drive
Adhesive pan Stainless steel double-layer type (outer layer can absorb solvent smell) Stainless steel double-layer type (outer layer can absorb solvent smell)
Laminating roller Mirror-effect treated, hot oil circulation Mirror-effect treated, hot oil circulation
Drying tunnel tension range 2-15 Kg 2-15 Kg
1st substrate tension range 4-25 Kg 4-25 Kg
2nd substrate tension range 3-25 Kg 3-25 Kg
Finished products tension range 4-25 Kg 4-25 Kg
Max. unwind diameter 800 mm 800 mm
Max. rewind diameter 800 mm 800 mm
Unwind material fixed method Shaftless(Built-in extended sleeve) Shaftless(Built-in extended sleeve)
Rewind material fixed method Shaftless(Built-in extended sleeve) Shaftless(Built-in extended sleeve)
Preheating roller Hot water circulation Hot water circulation
Guide roller type Ø120mm, shaft type, Hard chrome coating Ø120mm, shaft type, Hard chrome coating
Ladder Swing type Swing type
Max. material width 1000 mm 1300 mm
Coating roller width 1200 mm 1400 mm
Coating width range 600-1000 mm 600-1300 mm
Drying blower 5HP x 3 sets / 7.5HP x 3 sets 5HP x 3 sets / 7.5HP x 3 sets
Exhaust blower as optional 15/22 HP 15/22 HP
Memory data
Auto. Splicing system
Upper cutter on rewinder
Lower cutter on unwinder Optional Optional
Upper cutter on unwinder 1
Lower cutter on unwinder 1 Optional Optional
Upper cutter on unwinder 2 Optional Optional
Lower cutter on unwinder 2
Web guide system on unwinder 1
Web guide system on unwinder 2
Web guide system on drying tunnel outlet
Adjustable smoothing roller
Dancing roller tension control
Chamber doctor system Optional Optional
Sleeve-type impression roller Optional Optional
Induction type laminating roller Optional Optional
Preheating roller Optional Optional
Corona treatment device Optional Optional
