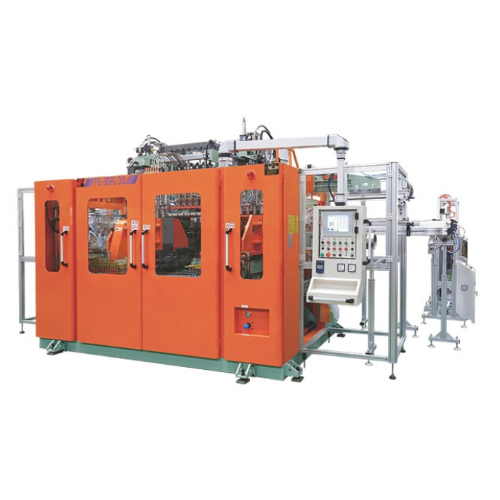

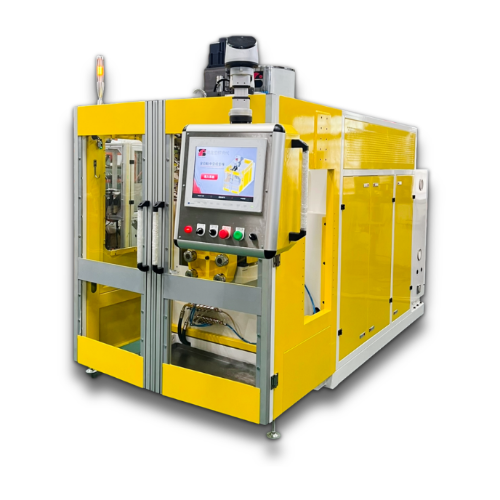

Name: التلقائي ضربة صب-آلة-FS-75HDSD
Brand: FULL SHINE PLASTIC MACHINERY CO., LTD.

تصنيف: التلقائي ضربة صب الإله

Applications: الزجاجات والجالونات والبراميل الأكواب والصواني وتغليف الأغذية الأدوات المنزلية والسلع الاستهلاكية القوالب الأولية والأغطية والحاويات المحقونة القطع الصناعية والتقنية قطع غيار السيارات والدراجات النارية منتجات المطاط إعادة التدوير والتركيب الرياضة والترفيه الأحذية

FULL SHINE PLASTIC MACHINERY CO., LTD.

بلد: تايوان

هاتف: 886-4-22765071

فاكس: 886-4-22765070

الشخص الذي يمكن الاتصال به: Ms. Huang

Blog الكتالوج الإلكتروني فيديو الاستفسار الآن

نموذج	فس-40 هسو	فس-45 هسو	فس-55 هسو	فس-65 هسو
اكتب	واحد يموت رئيس / محطة واحدة
مواد	PE / PP	PE / PP	PE / PP	PE / PP
قطر المسمار (م / م)	40	45	55	65
برغي L / D نسبة (L / D)	24/1	24/1	24/1	24/1

• & نبسب؛ همي شاشة تعمل باللمس (الخيار)، دمج مع نظام بلك لسهولة الصيانة.
• & نبسب؛ غرامة الصلب الشرائح القضبان لفتح قالب سريع وإغلاق مع الحركة الأفقية من عربات بواسطة الطريق الشريحة الخطية.
• & نبسب؛ محرك برغي عن طريق التحكم في علبة التروس المثبتة مباشرة ومحرك العاكس.
• & نبسب؛ رأس القالب مع جهاز رفع الرأس لسحب المواد السريع.
• & نبسب؛ تهب وحدة يحركها محرك هيدروليكي لتغيير القالب بسهولة - التصميم المبتكر.

SCREW DIAMETER(M/M)	MACHINE SERIES	MOLD HEAD(DIE HEAD)	MOLD STATION	PRODUCT TYPE
FS-40	(H) Horizontal	(S) Single Mold Head	(S) Single Mold Station	(O) Original
FS-45	(P) Parallel	(D) Double Mold Heads	(D) Double Mold Stations	(C) Two Colors
FS-55	(O) Standard / Oblique	(T) Three Mold Heads		(D) Two Layers
FS-65	(A) Pneumatic	(F) Four Mold Heads		(T) Three Layers
FS-75	(L) Frontal	(E) Eight Mold Heads		(F) Four Layers
FS-80	(I) Lateral			(L) Six Layers
FS-90				(V) View Stripe
FS-100				(P) PC baby bottle
Example
FS-65	P	D	S	D

MODEL	FS-40 HSSO	FS-45 HSSO	FS-55 HSSO	FS-65 HSSO	FS-75 HSSO
Material	PE/PP	PE/PP	PE/PP	PE/PP	PE/PP
Screw diameter(m/m)	40	45	55	65	75
Screw L/D ratio(L/D)	24/1	24/1	24/1	24/1	24/1
Screw R.P.M speed(r.p.m.)	20-66	15-61	15-60	15-60	15-58
Inveter motor(HP)	7.5	7.5	10	15	25
Oil hydraulic drive motor(HP)	5	7.5	10	10	15
Optional air compressor(HP)	5	5	7.5	7.5	10
Air pressurer(kg/cm2)	4-6	4-6	4-6	5-7	5-7
Clamping force(Ton)	1.5	3.9	4.4	5.6	10
Oil tank capacity(Gallon)	38	55	60	80	120
Nunber of heaters(ZONE)	5	4	4	6	5
Heating capacity(KW)	8	9.5	12.5	16.8	18
Total installed power(KW)	18	21	30	35	48
Extruding capacity per hour(kg/hr)	15	24	36	55	75
Dry cycle per hour(time/hr)	1285	1030	880	720	650
Product capacity(c.c./L)	15-500	60-1000	150-2500	500-5000	1L-10L
Product weight(g.)	5-40	10-100	20-170	40-280	80-500
Min./Max. diameter of product(m/m)	10-75	20-100	30-140	50-200	80-260
Extruding mouth outer diameter(m/m)	50	56	80	150	200
Mold center distance(m/m)	*	*	*	*	*
Clamping distance(m/m)	120-230	130-320	140-410	150-540	160-670
Length of mold capacity(m/m)	100-300	126-232	156-292	200-400	236-452
Width of mold capacity(m/m)	300	300	350	420	480
Machine net weight(kg)	2300	2800	3300	4200	7100
Machine dimension(m)	2.91.372.3	31.42.3	31.52.3	3.61.62.6	4.21.72.7

MODEL	FS-40 HDSO	FS-45 HDSO	FS-55 HDSO	FS-65 HDSO	FS-75 HDSO
Material	PE/PP	PE/PP	PE/PP	PE/PP	PE/PP
Screw diameter(m/m)	40	45	55	65	75
Screw L/D ratio(L/D)	24/1	24/1	24/1	24/1	24/1
Screw R.P.M speed(r.p.m.)	20-66	15-61	15-60	15-60	15-58
Inveter motor(HP)	5	7.5	10	15	40
Oil hydraulic drive motor(HP)	5	7.5	10	10	20
Optional air compressor(HP)	5	5	7.5	7.5	10
Air pressurer(kg/cm2)	4-6	4-6	4-6	5-7	5-7
Clamping force(Ton)	2.8	3.9	4.4	5.6	10
Oil tank capacity(Gallon)	38	55	60	80	120
Nunber of heaters(ZONE)	6	6	7	9	9
Heating capacity(KW)	7.5	10.25	13.6	17.5	25
Total installed power(KW)	15.5	22	33	45	56
Extruding capacity per hour(kg/hr)	15	24	36	55	85
Dry cycle per hour(time/hr)	1285	1030	880	720	650
Product capacity(c.c./L)	15-200	40-500	100-1250	280-1800	0.5L-2.5L
Product weight(g.)	4-25	5-40	10-100	20-170	40-170
Min./Max. diameter of product(m/m)	10-65	20-70	30-85	40-100	40-130
Extruding mouth outer diameter(m/m)	38	42	50	65	80
Mold center distance(m/m)	85	100	120	160	250
Clamping distance(m/m)	120-230	130-320	140-410	150-540	160-670
Length of mold capacity(m/m)	100-210	126-232	156-292	200-400	236-452
Width of mold capacity(m/m)	230	300	350	420	480
Machine net weight(kg)	2400	3000	3400	4400	7300
Machine dimension(m)	2.31.42.2	31.42.3	31.52.3	3.82.12.6	4.332.9

MODEL

FS-40 HTSO

FS-45 HTSO

FS-55 HTSO

FS-65 HTSO

FS-75 HTSO

Material

PE/PP

Screw diameter(m/m)

Screw L/D ratio(L/D)

24/1

Screw R.P.M speed(r.p.m.)

20-66

15-61

15-60

15-58

Inveter motor(HP)

7.5

Oil hydraulic drive motor(HP)

7.5

Optional air compressor(HP)

7.5

Air pressurer(kg/cm2)

4-6

5-7

Clamping force(Ton)

2.8

3.9

4.4

6.9

Oil tank capacity(Gallon)

120

Nunber of heaters(ZONE)

Heating capacity(KW)

8.5

19.3

21.5

Total installed power(KW)

16.5

23.5

52.5

Extruding capacity per hour(kg/hr)

Dry cycle per hour(time/hr)

1250

1000

850

720

650

Product capacity(c.c./L)

10-125

20-325

40-825

100-1000

180-1500

Product weight(g.)

3-10

5-25

10-50

10-90

15-145

Min./Max. diameter of product(m/m)

10-45

20-55

30-55

30-80

30-95

Extruding mouth outer diameter(m/m)

Mold center distance(m/m)

75+75

85+85

100+100

120+120

Clamping distance(m/m)

120-230

130-320

140-410

150-540

160-670

Length of mold capacity(m/m)

100-210

126-232

156-292

200-380

236-452

Width of mold capacity(m/m)

230

300

350

420

480

Machine net weight(kg)

2600

3200

3700

4700

7600

Machine dimension(m)

2.3*1.4*2.2

3*1.4*2.3

3*1.5*2.3

3.8*2.1*2.6

4.2*1.7*2.7

MODEL	FS-55 HFSO	FS-65 HFSO	FS-75 HFSO	FS-90 HFSO
Material	PE/PP	PE/PP	PE/PP	PE/PP
Screw diameter(m/m)	55	65	75	90
Screw L/D ratio(L/D)	24/1	24/1	24/1	24/1
Screw R.P.M speed(r.p.m.)	15-60	15-60	15-58	15-58
Inveter motor(HP)	15	20	30	50
Oil hydraulic drive motor(HP)	10	10	15	15
Optional air compressor(HP)	15	15	20	20
Air pressurer(kg/cm2)	6-8	6-8	6-8	6-8
Clamping force(Ton)	4.4	5.6	10	13
Oil tank capacity(Gallon)	60	80	120	250
Nunber of heaters(ZONE)	11	17	13	15
Heating capacity(KW)	16.5	21.3	25.7	30
Total installed power(KW)	37.5	47	61	80
Extruding capacity per hour(kg/hr)	36	55	75	10
Dry cycle per hour(time/hr)	750	750	650	650
Product capacity(c.c./L)	30-300	100-500	300-1000	500-2500
Product weight(g.)	10-25	10-40	15-90	40-170
Min./Max. diameter of product(m/m)	20-55	30-55	30-90	30-90
Extruding mouth outer diameter(m/m)	37	42	50	75
Mold center distance(m/m)	90+90	90+90	120+120	120+120
Clamping distance(m/m)	140-410	150-540	160-670	160-670
Length of mold capacity(m/m)	156-292	200-380	236-452	250-550
Width of mold capacity(m/m)	380	450	510	550
Machine net weight(kg)	4000	5000	7900	9500
Machine dimension(m)	3.11.82.3	4.232.63	4.322.7	5.23.13.5

MODEL	FS-45 HSDO	FS-55 HSDO	FS-65 HSDO	FS-75 HSDO
Material	PE/PP	PE/PP	PE/PP	PE/PP
Screw diameter(m/m)	45	55	65	75
Screw L/D ratio(L/D)	24/1	24/1	24/1	24/1
Screw R.P.M speed(r.p.m.)	15-61	15-60	15-60	15-58
Inveter motor(HP)	7.5	10	15	30
Oil hydraulic drive motor(HP)	7.5	10	10	15
Optional air compressor(HP)	10	15	15	20
Air pressurer(kg/cm2)	4-6	4-6	5-7	5-7
Clamping force(Ton)	3.9	4.4	6.9	10
Oil tank capacity(Gallon)	60	80	120	160
Nunber of heaters(ZONE)	4	4	5	5
Heating capacity(KW)	9.5	12.5	16.8	18
Total installed power(KW)	22	28	37	53
Extruding capacity per hour(kg/hr)	24	36	55	75
Dry cycle per hour(time/hr)	1030*2	880*2	720*2	650*2
Product capacity(c.c./L)	40-500	65-1250	150-2500	500-5000
Product weight(g.)	5-40	10-100	20-170	40-280
Min./Max. diameter of product(m/m)	10-75	20-100	30-140	50-200
Extruding mouth outer diameter(m/m)	56	80	150	200
Mold center distance(m/m)	*	*	*	*
Clamping distance(m/m)	130-320	140-410	150-540	160-670
Length of mold capacity(m/m)	126-232	156-292	200-380	236-452
Width of mold capacity(m/m)	250	300	330	360
Machine net weight(kg)	6400	6900	7400	8300
Machine dimension(m)	31.82.5	31.92.5	3.222.8	4.22.12.9

MODEL	FS-45 HDDO	FS-55 HDDO	FS-65 HDDO	FS-75 HDDO
Material	PE/PP	PE/PP	PE/PP	PE/PP
Screw diameter(m/m)	45	55	65	75
Screw L/D ratio(L/D)	24/1	24/1	24/1	24/1
Screw R.P.M speed(r.p.m.)	15-61	15-60	15-60	15-58
Inveter motor(HP)	10	10	15	30
Oil hydraulic drive motor(HP)	7.5	10	10	15
Optional air compressor(HP)	10	15	15	20
Air pressurer(kg/cm2)	4-6	4-6	5-7	5-7
Clamping force(Ton)	3.9	4.4	6.9	10
Oil tank capacity(Gallon)	60	80	120	160
Nunber of heaters(ZONE)	6	7	8	8
Heating capacity(KW)	10.25	13.6	17.5	19
Total installed power(KW)	26	30	38	54
Extruding capacity per hour(kg/hr)	32	36	55	75
Dry cycle per hour(time/hr)	1030*2	880*2	720*2	650*2
Product capacity(c.c./L)	30-200	40-500	100-1000	280-2000
Product weight(g.)	4-20	5-40	10-65	20-110
Min./Max. diameter of product(m/m)	10-65	20-70	30-85	40-110
Extruding mouth outer diameter(m/m)	42	50	65	80
Mold center distance(m/m)	100	120	140	160
Clamping distance(m/m)	130-320	140-410	150-540	160-670
Length of mold capacity(m/m)	126-232	156-292	200-380	236-452
Width of mold capacity(m/m)	250	300	330	360
Machine net weight(kg)	6500	7000	7500	8500
Machine dimension(m)	31.82.5	3.222.8	3.433	4.23.13.1

MODEL	FS-55 HTDO	FS-65 HTDO	FS-75 HTDO
Material	PE/PP	PE/PP	PE/PP
Screw diameter(m/m)	55	65	75
Screw L/D ratio(L/D)	24/1	24/1	24/1
Screw R.P.M speed(r.p.m.)	15-60	15-60	15-58
Inveter motor(HP)	10	15	30
Oil hydraulic drive motor(HP)	10	10	15
Optional air compressor(HP)	15	15	20
Air pressurer(kg/cm2)	4-6	5-7	5-7
Clamping force(Ton)	4.4	6.9	10
Oil tank capacity(Gallon)	110	120	160
Nunber of heaters(ZONE)	9	10	10
Heating capacity(KW)	15	19.3	21.5
Total installed power(KW)	32	40	56.5
Extruding capacity per hour(kg/hr)	36	55	75
Dry cycle per hour(time/hr)	850*2	720*2	650*2
Product capacity(c.c./L)	15-300	50-600	100-1000
Product weight(g.)	5-25	8-45	10-70
Min./Max. diameter of product(m/m)	10-55	20-70	30-90
Extruding mouth outer diameter(m/m)	40	55	80
Mold center distance(m/m)	85+85	100+100	120+120
Clamping distance(m/m)	140-410	150-540	160-670
Length of mold capacity(m/m)	156-292	200-380	236-452
Width of mold capacity(m/m)	300	330	360
Machine net weight(kg)	7100	7600	8700
Machine dimension(m)	3.422.8	3.633	4.43.13.1

MODEL	FS-55 HFDO	FS-65 HFDO	FS-75 HFDO
Material	PE/PP	PE/PP	PE/PP
Screw diameter(m/m)	55	65	75
Screw L/D ratio(L/D)	24/1	24/1	24/1
Screw R.P.M speed(r.p.m.)	15-60	15-60	15-58
Inveter motor(HP)	15	20	30
Oil hydraulic drive motor(HP)	10	10	15
Optional air compressor(HP)	15	15	20
Air pressurer(kg/cm2)	6-8	6-8	6-8
Clamping force(Ton)	4.4	6.9	10
Oil tank capacity(Gallon)	80	120	160
Nunber of heaters(ZONE)	11	13	13
Heating capacity(KW)	16.5	20.8	25.7
Total installed power(KW)	37.5	48	61
Extruding capacity per hour(kg/hr)	36	55	75
Dry cycle per hour(time/hr)	750*2	750*2	650*2
Product capacity(c.c./L)	50-250	100-400	200-600
Product weight(g.)	5-20	10-30	20-50
Min./Max. diameter of product(m/m)	20-55	20-55	20-70
Extruding mouth outer diameter(m/m)	37	42	50
Mold center distance(m/m)	85+85+85	85+85+85	100+100+100
Clamping distance(m/m)	140-410	150-540	160-670
Length of mold capacity(m/m)	156-292	200-380	236-452
Width of mold capacity(m/m)	300	330	360
Machine net weight(kg)	7200	7700	8900
Machine dimension(m)	3.42.23.1	3.62.33.2	4.43.33.3

MODEL	FS-40 HSSD	FS-45 HSSD	FS-55 HSSD	FS-65 HSSD	FS-75 HSSD
Material	PE/PP	PE/PP	PE/PP	PE/PP	PE/PP
Screw diameter(m/m)	40/25	45/25	55/25	65/25	75/25
Screw L/D ratio(L/D)	24/1	24/1	24/1	24/1	24/1
Screw R.P.M speed(r.p.m.)	20-66	15-61	15-60	15-60	15-58
Inveter motor(HP)	5/2	7.5/2	10/2	15/2	25/2
Oil hydraulic drive motor(HP)	5	7.5	10	10	15
Optional air compressor(HP)	5	5	7.5	7.5	10
Air pressurer(kg/cm2)	4-6	4-6	5-7	5-7	5-7
Clamping force(Ton)	2.8	3.9	4.4	6.9	10
Oil tank capacity(Gallon)	38	55	60	80	120
Nunber of heaters(ZONE)	6	6	6	7	7
Heating capacity(KW)	9.5	12	15	19.5	22
Total installed power(KW)	19	25	32	40.5	44
Extruding capacity per hour(kg/hr)	15	24	42	55	75
Dry cycle per hour(time/hr)	1285	1030	880	720	650
Product capacity(c.c./L)	15-500	60-1000	150-2500	1L-5L	1L-10L
Product weight(g.)	5-40	10-100	20-170	40-280	80-500
Min./Max. diameter of product(m/m)	10-75	20-100	30-140	50-200	80-260
Extruding mouth outer diameter(m/m)	50	56	80	150	200
Mold center distance(m/m)	*	*	*	*	*
Clamping distance(m/m)	120-230	130-320	140-410	150-540	160-670
Length of mold capacity(m/m)	126-232	156-292	200-380	236-452	236-452
Width of mold capacity(m/m)	230	300	350	420	480
Machine net weight(kg)	2600	3100	3600	4500	7400
Machine dimension(m)	2.61.82.7	31.92.8	3.322.9	3.61.63	3.92.23.1

MODEL	FS-55 HSSC	FS-65 HSSC	FS-75 HSSC
Material	PE/PP	PE/PP	PE/PP
Screw diameter(m/m)	55/55	65/65	7575
Screw L/D ratio(L/D)	24/1	24/1	24/1
Screw R.P.M speed(r.p.m.)	15-60	15-60	15-58
Inveter motor(HP)	10/10	15/15	25/25
Oil hydraulic drive motor(HP)	10	10	15
Optional air compressor(HP)	7.5	7.5	10
Air pressurer(kg/cm2)	5-7	5-7	5-7
Clamping force(Ton)	4.4	6.9	10
Oil tank capacity(Gallon)	60	80	120
Nunber of heaters(ZONE)	6	6	7
Heating capacity(KW)	19	24.5	26
Total installed power(KW)	43	56	77
Extruding capacity per hour(kg/hr)	42	55	75
Dry cycle per hour(time/hr)	880	720	600
Product capacity(c.c./L)	150-2500	1L-5L	1L-10L
Product weight(g.)	20-170	40-280	80-500
Min./Max. diameter of product(m/m)	30-140	50-200	80-260
Extruding mouth outer diameter(m/m)	80	150	200
Mold center distance(m/m)	*	*	*
Clamping distance(m/m)	140-540	150-540	160-670
Length of mold capacity(m/m)	200-380	236-452	236-452
Width of mold capacity(m/m)	350	420	480
Machine net weight(kg)	3600	4500	7400
Machine dimension(m)	3.322.9	3.62.13	3.92.23.1

الصور

منتجات ذات صله

سلسلة با

Buyers Also Search

Blow Molding EBM Extrusion machine high production extrusion blow molding machine
